# Main window

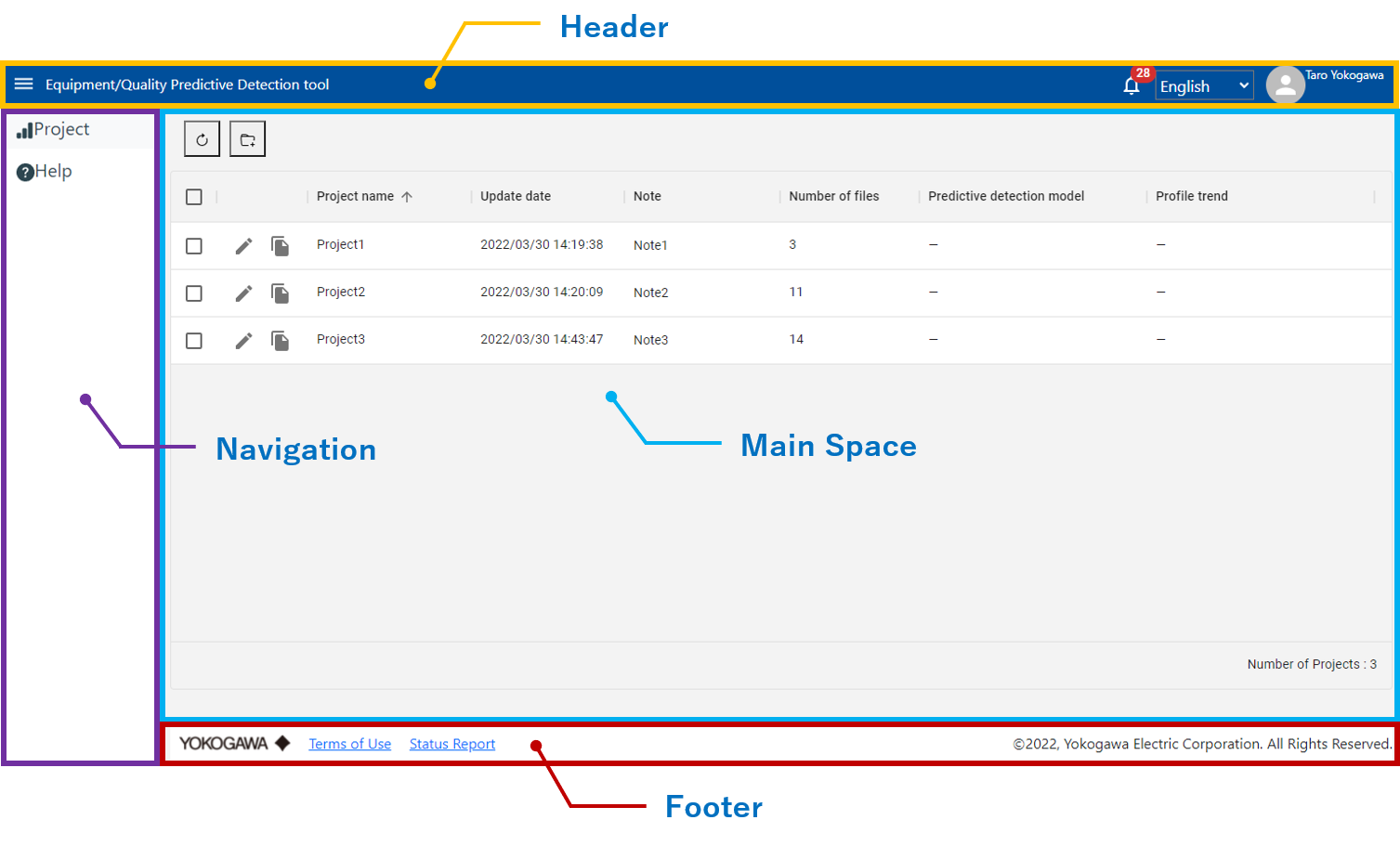

The main window consists of Header, Navigation, Main Space, and Footer parts.

# About the main screen

system

Part Functions, Menu Name Overview
Header Notification Displaying Notification (Unread Notification)
Notification List(The latest 100 Read/Unread Items)
Switch Language Switching Language (English/Japanese)
Account Log out
Automatic deletion of data ON/OFF setting
License and Serial Numbers Registration / Display
Navigation Project <<Main_Space>>
[Project]
Project List
Create a New Project
Edit Project Name / Note
Copy Project
Delete Project
[Project Detail]
Upload Data File
Data File List
Delete Data File
Enlarge and Edit Graph
[Predictive Detection Model]
Create Predictive Detection Model
Confirm Properties of Predictive Detection Model
Test Predictive Detection Model
Display Result of Predictive Detection Model Test
Download Predictive Detection Model
[Profile Trend]
Create Profile Trend
Check / Edit Profile Trend
Download Profile Trend
Help Display Help
Footer Terms of Use Show the terms of use
Status Report Show the status report


When clicking the "Project" of navigation, move to main screen.
Also, clicking the "Help", move to manual page.

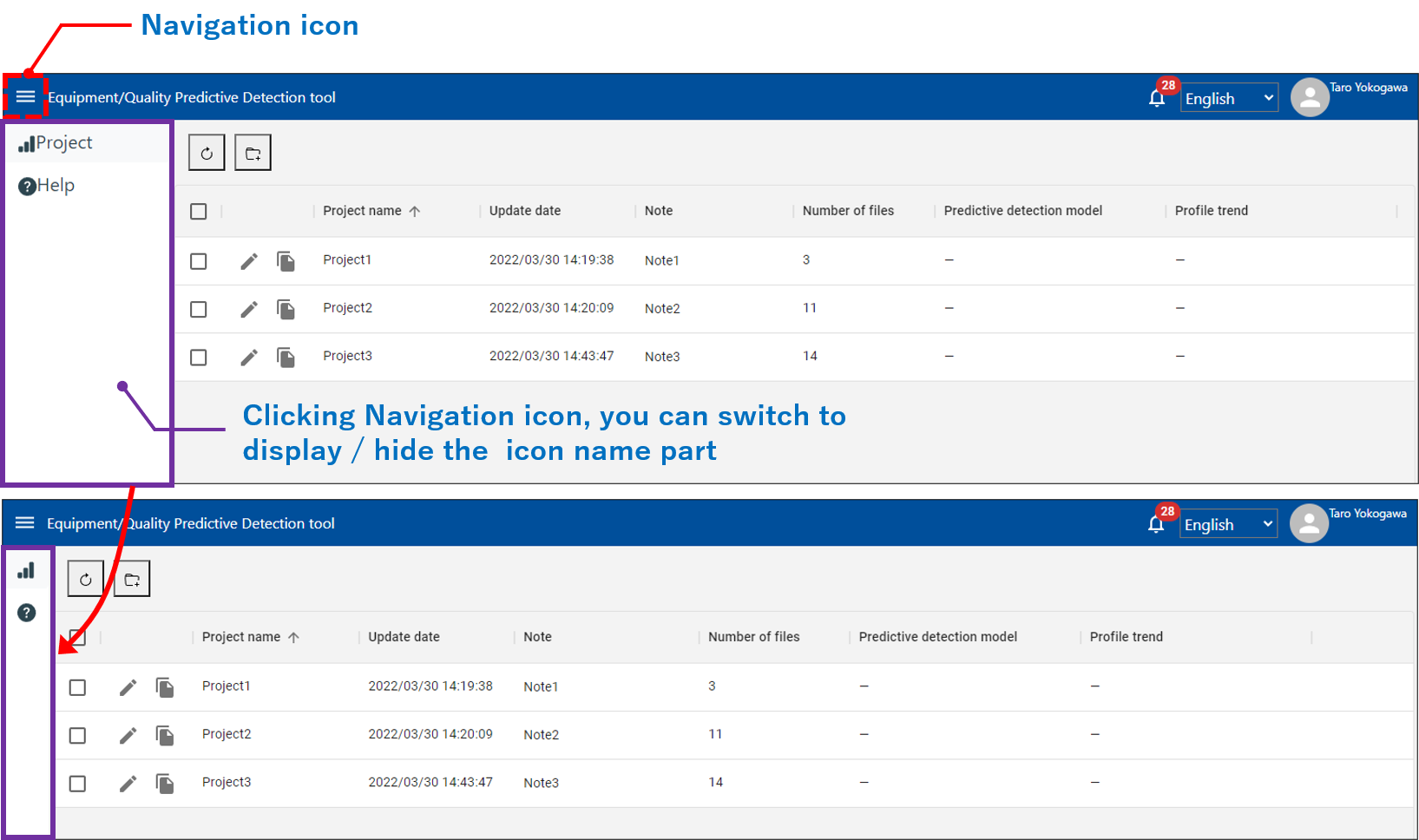

Clicking the "Navigation" icon on the header, you can switch to display / hide the icon name part on the Navigation.
You can widen the main space by hiding the icon name parts.

system


# Notification

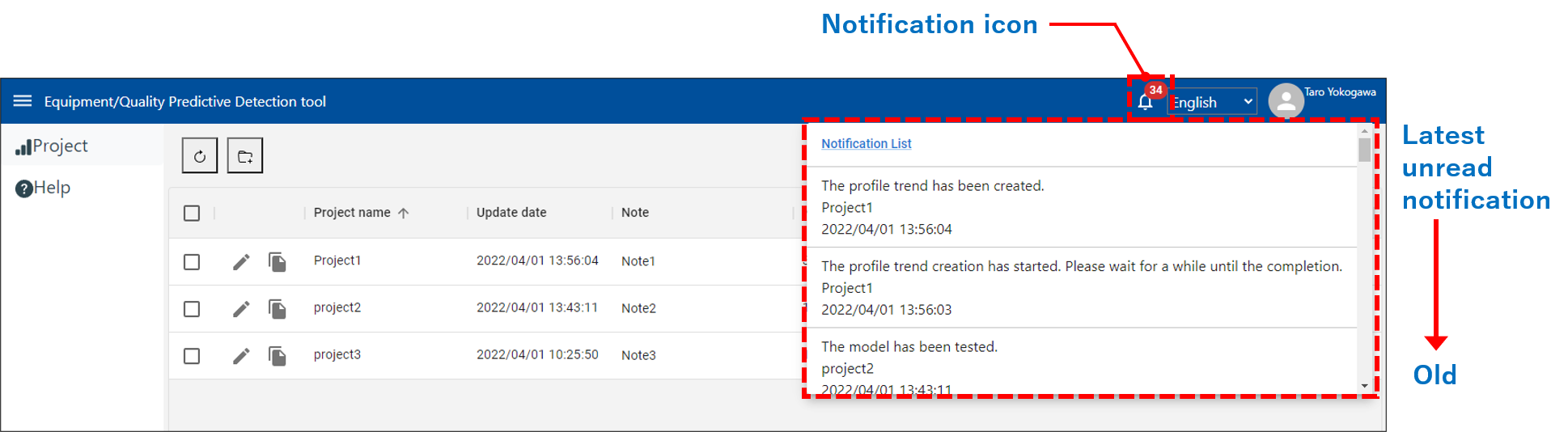

When clicking the "Notification" icon on the header, it will be shown unread notifications.
Also, you can move to the related page by clicking each notification.
Please see here for the type of notifications.

system

Note:

Unread notifications can be shown up to 100 items. When they exceed 100 items, the oldest notification will be deleted.

#   Notification badge

When there are any unread notifications, it will be shown the badge on the notification icon.
The number shown on the badge will be disappered when clicking each notification.
The number can be shown 1 to 99 and 99+ (When there are more than 99 unread notifications).

system

#   Notification list

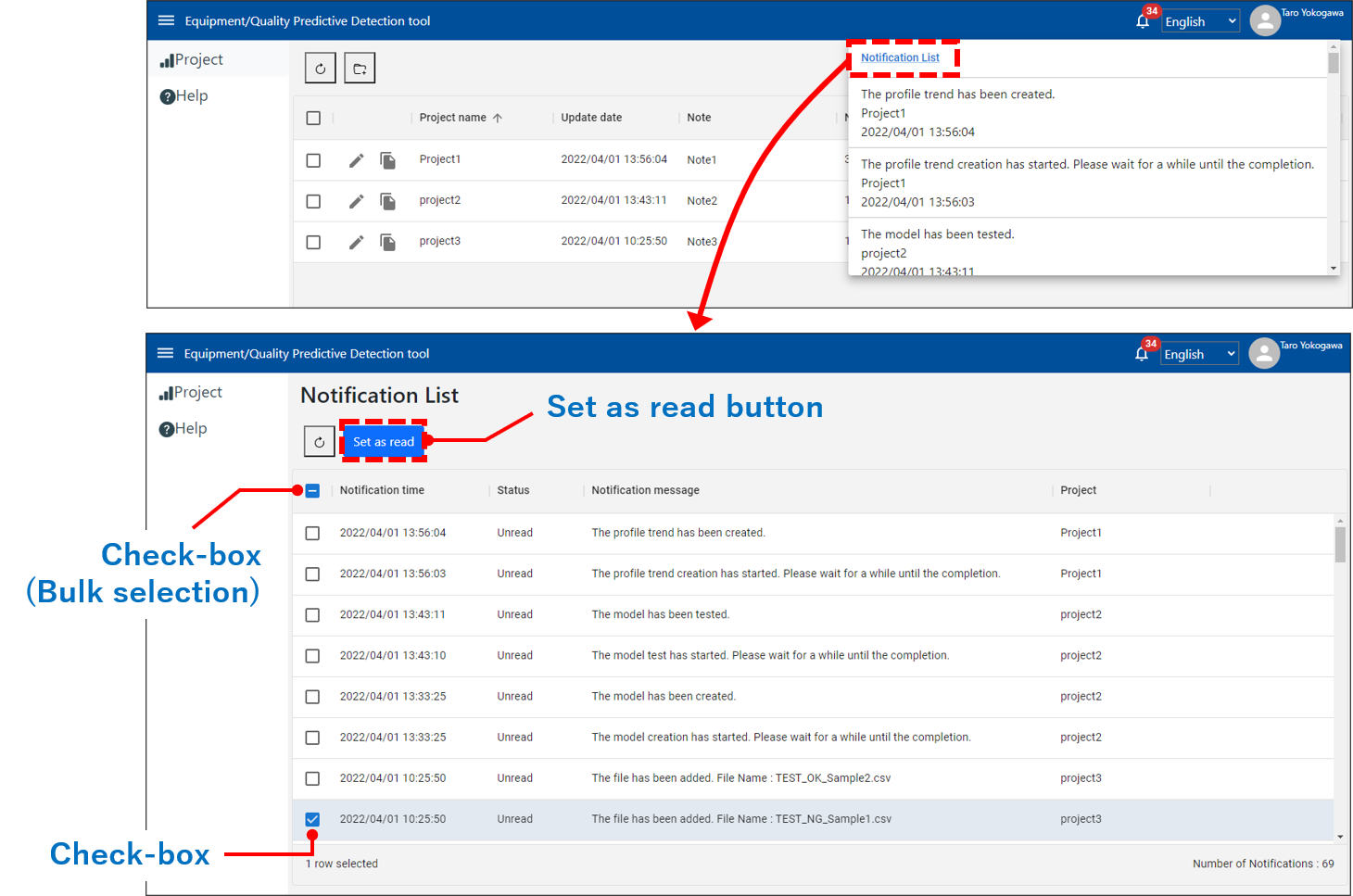

When clicking the "Notification List", move to the history page which is shown both the unread and read notifications list.
When checking the one or more check-boxes of the notification list, it will be shown the "Set as read" button.
In this state, when clicking the "Set as read" button, Checked unread notifications can be marked as read.
By the check-box for "Bulk selection", you can also select all unread notifications at once.
Also, by clicking each notification, you can move to the related page from this page.

system

Note:

Notification list can be shown up to 100 items. When they exceed 100 items, the oldest notification will be deleted.



# Switching language

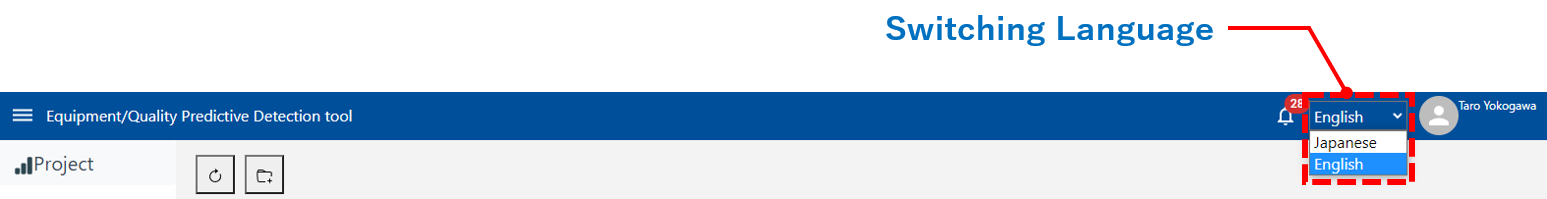

When clicking the "Switching Language" icon on the header, it will be shown a pull-down menu and you can switch language.
Supporting languages are English and Japanese.

system

Note:

The language when starting the tool is determined by the language setting of your web browser.



# Account

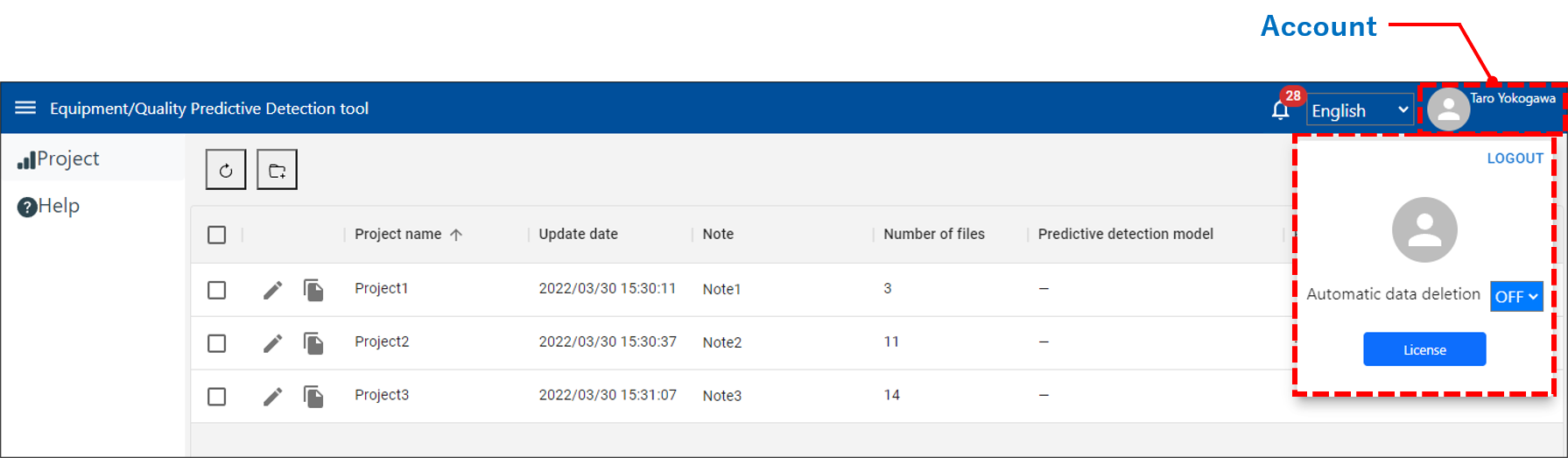

When clicking the "Account" icon on the header, it will be shown the account information of the logged-in user.
When clicking the "LOGOUT" on the account information screen, it will be moved to the logout completion page. Please close your web browser.

system

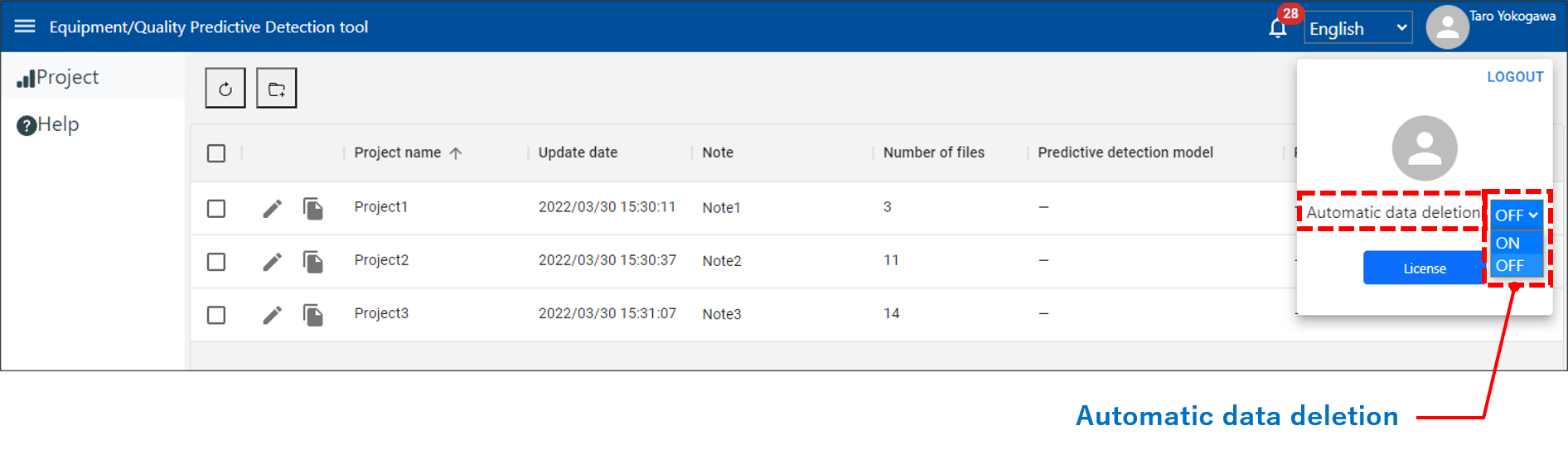

On the account information screen, you can switch the ON / OFF setting of "Automatic data deletion".
In the case of setting ON, all of the data in the project will be deleted around 2 AM.
The registered license information (Predictive Detection Model Download license, Serial number, and Cloud Equipment/Quality Predictive Detection tool license) will not be deleted.

system

# Registration of license and serial number

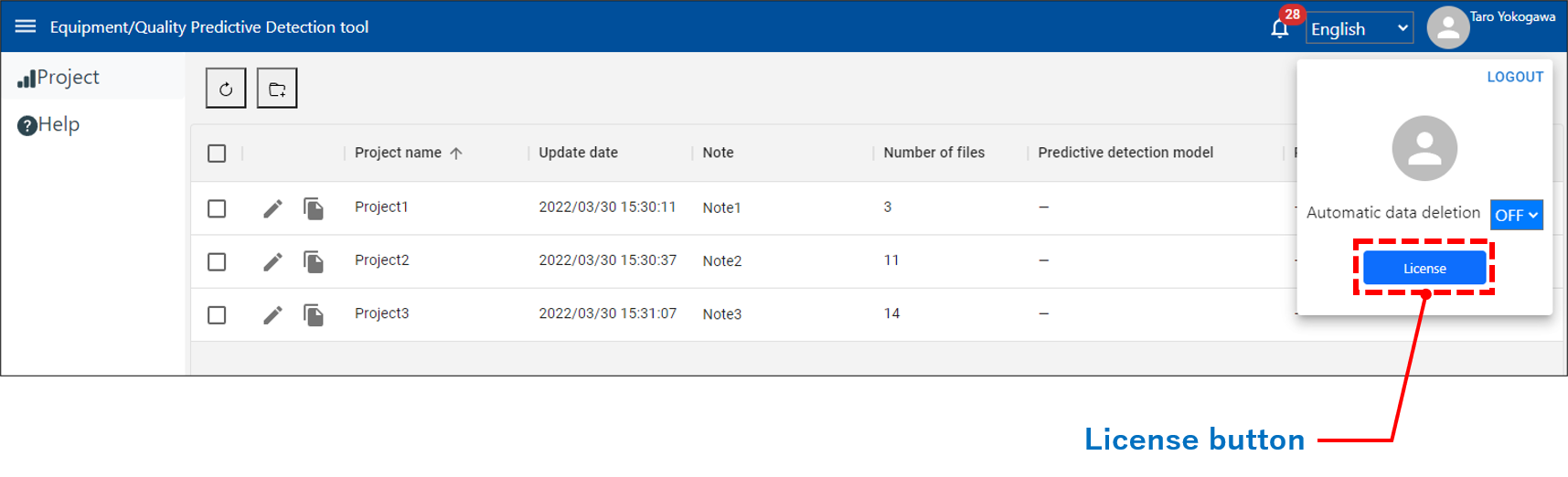

When clicking the "License" button on the account information screen, it will be moved to the license number registration page.

system

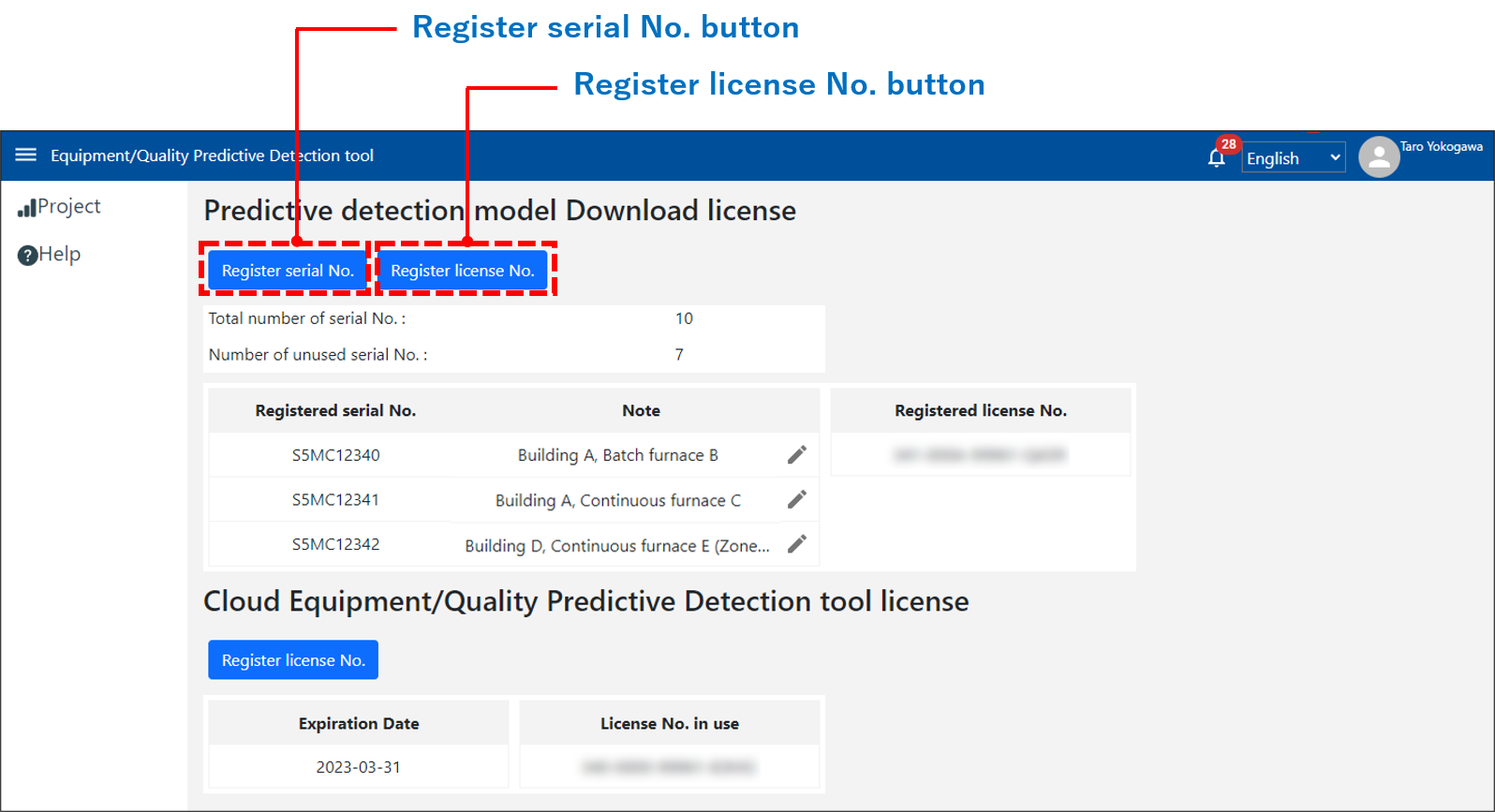

#   Predictive Detection Model Download license

When clicking the "Register license No." button, you can register "Predictive Detection Model Download License".
When clicking the "Register Serial No." button, you can register the serial number of the SMARTDAC+ which you want to load the "Predictive Detection Model", and note. "Note" can be used as a note column for each serial number of SMARTDAC+.

Also, you can confirm the below on the list page.

  • Total number of serial No.
  • Number of unused serial No.
  • Registered serial No., and note
  • Registered license No.

system

Caution:

The serial number cannot be changed once you have registered. Please CORRECTLY register the serial number of SMARTDAC+ which you want to download.
You can confirm the serial number from the "System Information" screen of SMARTDAC+. please refer to "Model GX10/GX20/GP10/GP20 Paperless Recorder User's Manual" or "Data Acquisition System GM User's Manual".

Note:

  • The note is editable for up to 120 characters.
  • '"' (Double Quotation character) is not available for the note.

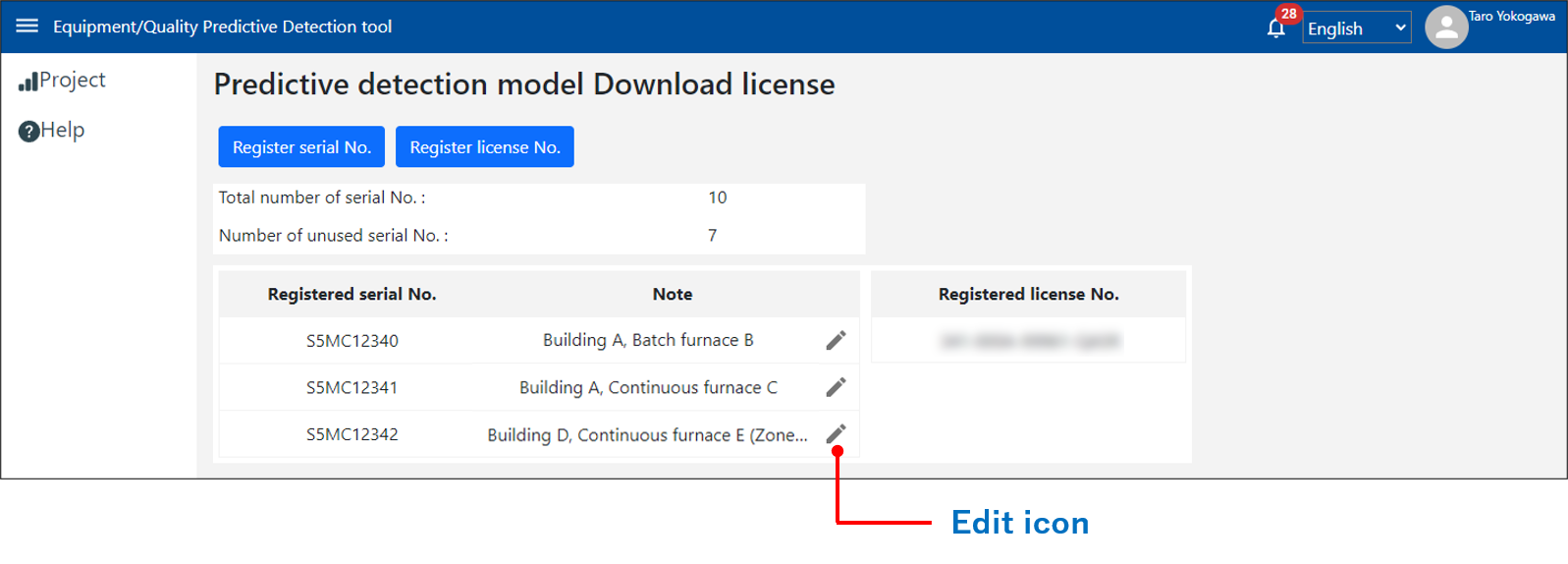

When clicking the "Edit" icon of the serial number which has been registered, it will be switched to the edit mode.

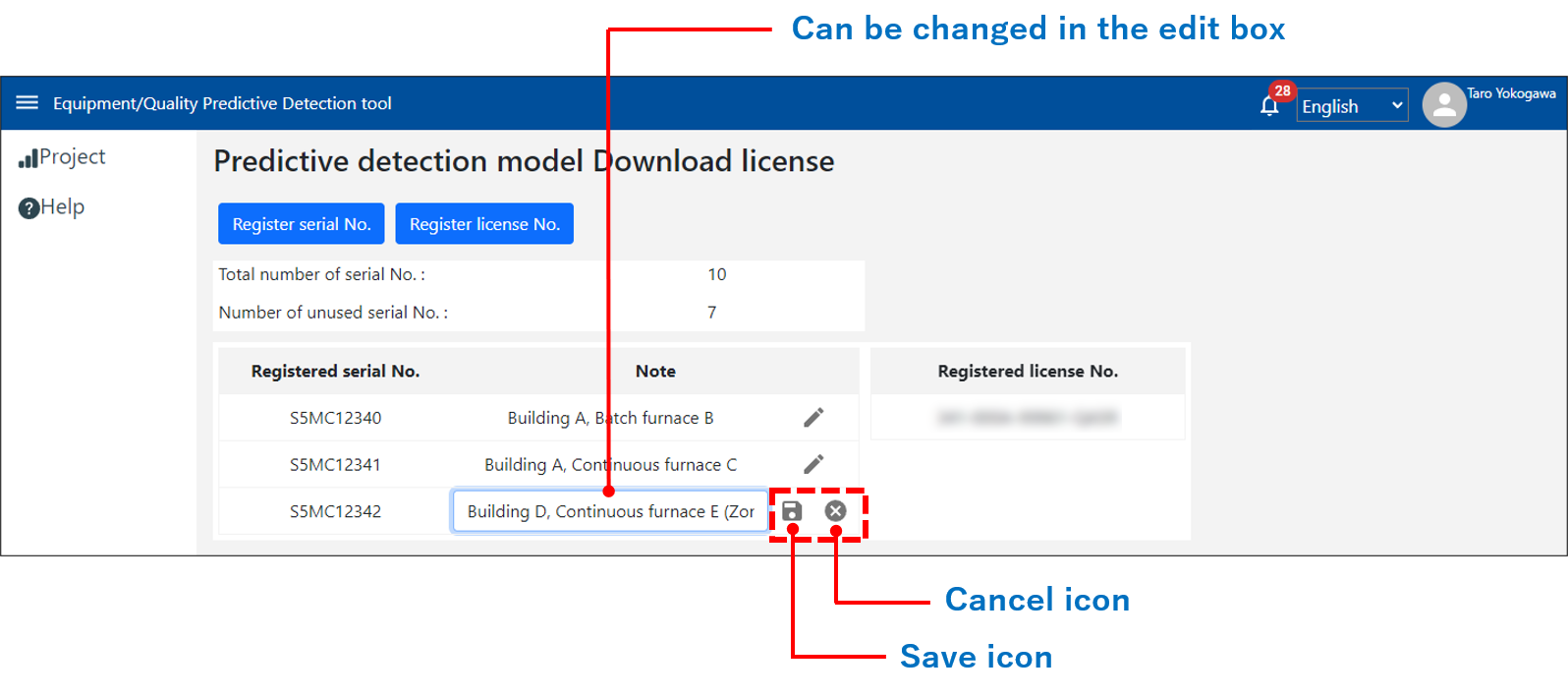

After editing the note, the note is determined by clicking the "Save" icon or Enter key.
When clicking the "Cancel" icon, the edited note will be discarded.

system system

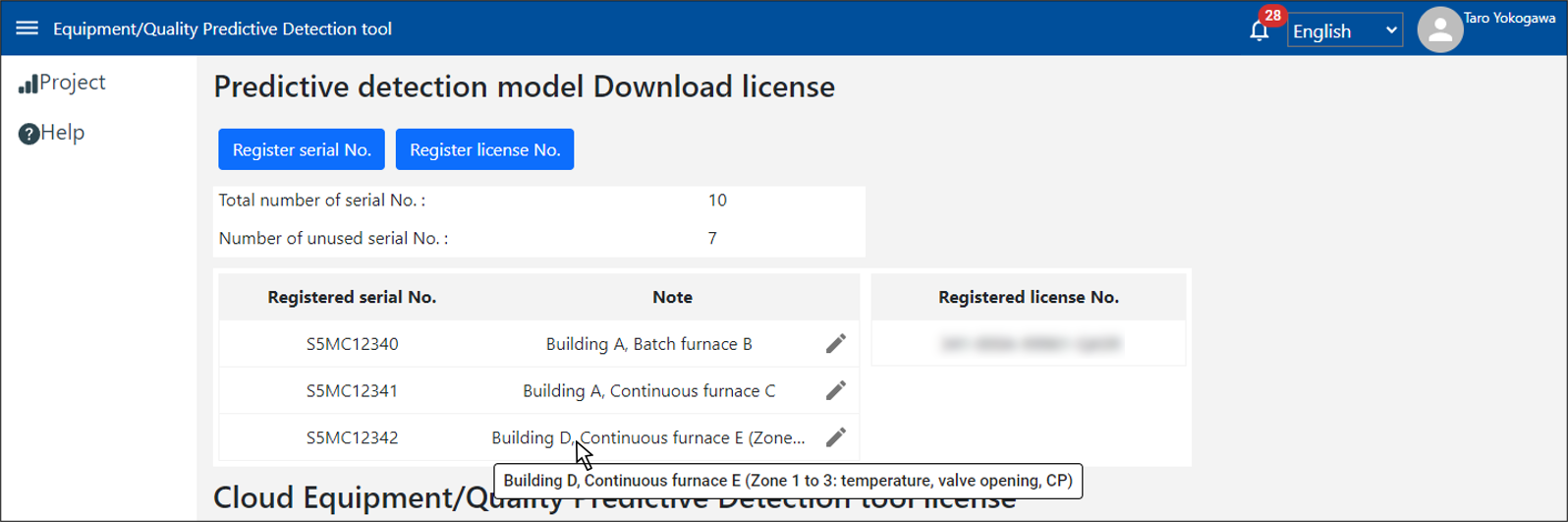

When the note is overflowed from space, you can confirm the entire note string by hovering the mouse cursor over the note.

system

#   Cloud Equipment/Quality Predictive Detection tool license

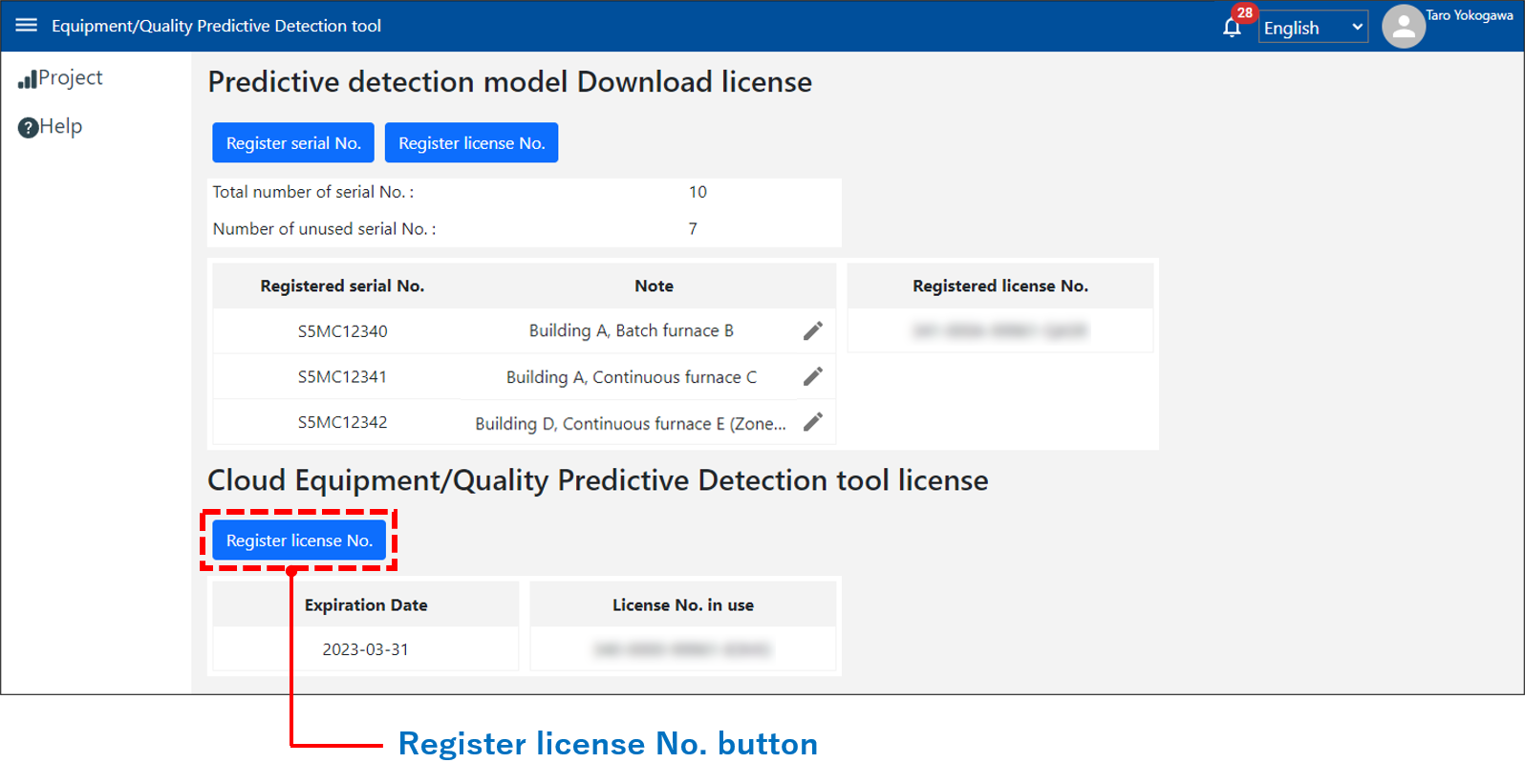

When clicking the "Register license No." button, you can register an annual "Cloud Equipment/Quality Predictive Detection tool license".
Also, you can confirm the below on the list page.

  • Expiration Date
  • License No. in use

system

Note:

  • Before registering an annual license, this tool is valid for 2 months after creating an account.
  • When expired valid period, you will be unavailable for the below operations.
    Please purchase and register a newer license.
    • Project
      • Creating / Editing / Copying projects and editing notes.
    • Project detail
      • Uploading files and editing graphs.
    • Predictive Detection Model
      • Creating / Testing / Downloading the "Predictive Dtection Model".
    • Profile Trend
      • Creating / Editing / Downloading the "Profile Trend".
    • Predictive Detection Model Download license
      • Registration of license number and SMARTDAC+ serial number.
    • Switching automatic deletion of data ON/OFF
